ALS450T-RGBW

Features

Applications
RGB Color Changing Wall Washing Lighting
Lamp Type
High Output LEDs (No Mercury)
Lens
Clear Glass Lens
Optics
15°, 20°, 30°, or 45°
Length
1', 2', 4'
Construction
Aluminum Extrusion
Weight
6.93 lbs (1')
8.11 lbs. (2')
11.50 lbs (4')
Mounting
Mounting Brackets (Included)
Listing
Dry or Wet (IP65) Location
UL1598, CSA C22.2#250.0
UL8750, CSA250

Electrical

Dimming
DMX-512 1990
Maximum Signal Run
60 Fixtures
Primary Voltage
120V or 277V
Secondary Voltage
24VDC

Temperature Ratings

Operating
-20° to 48°C (-4° to 120°F)
Startup
-20° to 48°C (-4° to 120°F)
Storage
-40° to 76°C (-40° to 170°F)

Lamp Specifications

Lamp Number
RGB,
RGBW-C
Description
Color Changing: Red, Green, Blue, White (2850K - 3050K),
Color Changing: Red, Green, Blue, Cool White (5700K - 6300K)
L70 LED Life
30,000 hrs.,
30,000 hrs.

Series Downloads

LED Color Options

Certifications

Related Categories

, , , , ,

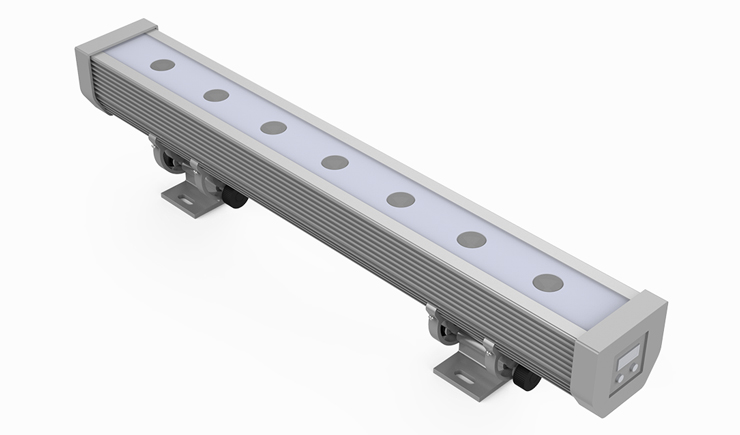

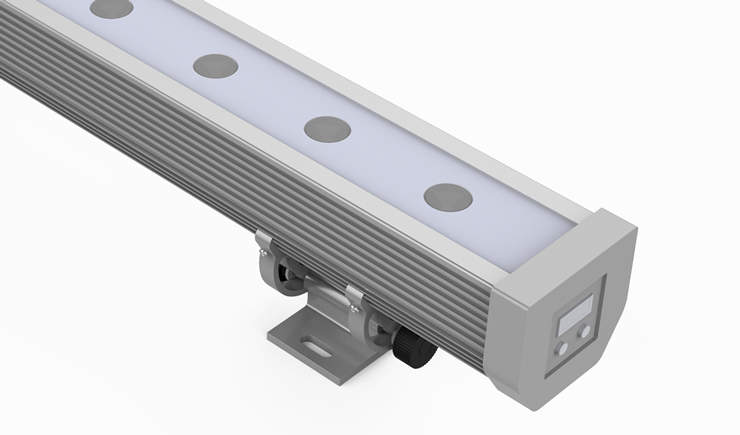

  • alumLEDs ALS450T-RGBW Image #01
  • alumLEDs ALS450T-RGBW Image #02
alumLEDs ALS450T-RGBW Image #0101 alumLEDs ALS450T-RGBW Image #0202

Description

ALS450T-RGBW is designed for indoor or outdoor applications (wall wash lighting, accent lighting, facade lighting, grazing, and others) this luminaire is offered with RGB LEDs, variety of optics, watts per foot, and 120V or 277V options. While decorating and highlighting building facades, wall features, and other applications, ALS450T-RGB can work in independent or DMX mode, which can generate various color changing effects, such as flashing, fading, steady, seven colors jumping synchronously, and many more.

End View

End View

Mounting Cove Guidelines

Mounting Clip
Side Mount
Side Mount

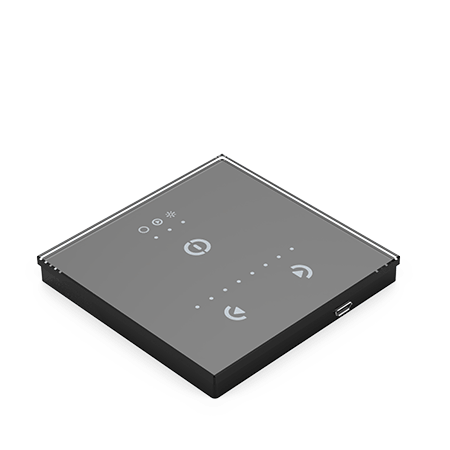

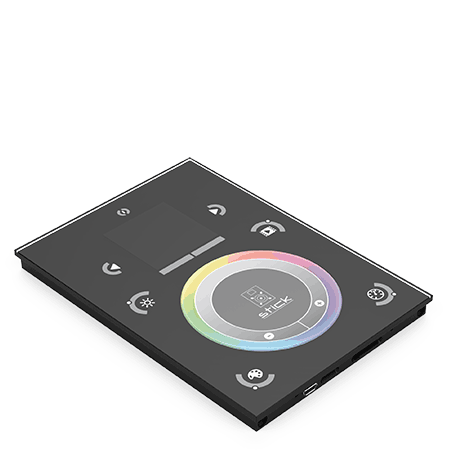

Controllers

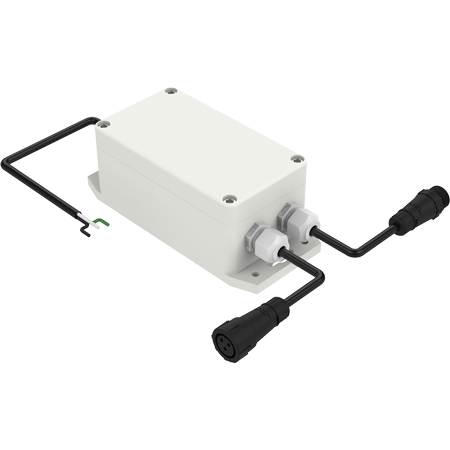

DMX Signal Amplifier
#ALS450T-RGBW-AMP

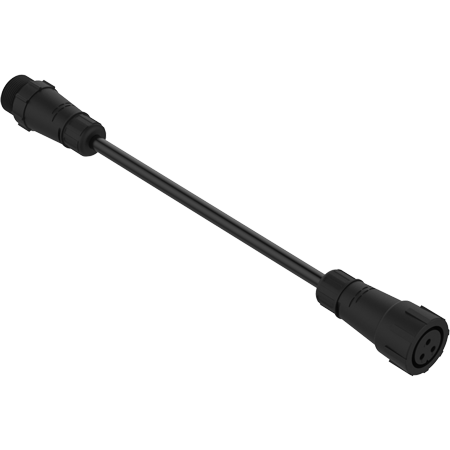

DMX Signal Jumper Cable
(ALS450T-RGBW-JC-X)
(X = Specify Length)
Available Lengths:
3’, 6’, 16’, 32’
