LLED8600-UC

Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Lamp Type
Color Changing LEDs: Red, Green, Blue, White
Lens
Clear (Wet Location Only)
Viewing Angle
120°
Mounting
Mounting Channel or Mounting Clips (Sold Separately)
Weight
0.078 lbs per foot
Construction
ABS Extrusion
Length
Built to Order
Listing
Dry, Wet, or IP67 Location
UL2108, CSA C22.2 #9
UL8750, CSA250

Electrical

Dimming
DMX-512
Maximum Run
Based on 5 Amps
21’ (5.5W)
26’ (4.5W)
Maximum Run
Based on 4 Amps for Class II
17’ (5.5W)
21’ (4.5W)
Voltage
24VDC
Driver
Remote (Sold Separately)
Temperature Ratings
Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Series Downloads

LED Color Options

Certifications

Related Categories

, , , , , ,


  • lipLEDs LLED8600-UC Image #01
  • lipLEDs LLED8600-UC Image #02

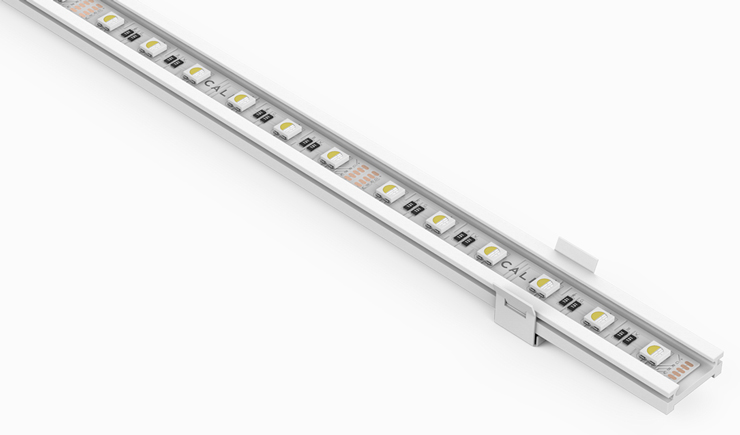

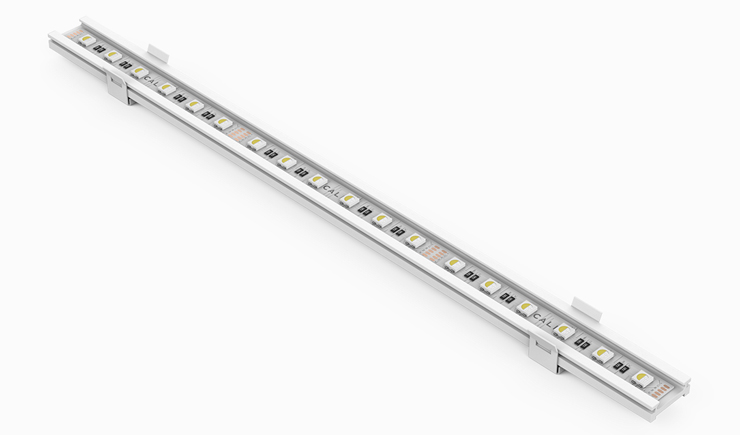

lipLEDs LLED8600-UC Image #0101 lipLEDs LLED8600-UC Image #0202

Designed for indoor or outdoor use, the lipLEDs Series is ideal for many applications including the amusement, recreation, and architectural industries. lipLEDs are excellent for decorative lighting, accent lighting, path lighting, and many more applications.

lipLEDs are used in: Restaurants, Casinos, Retail Stores, Shopping Malls, Hotels, Movie Theatres, and many more.

Connectors (Click on an Option for Additional Information)

Power Connector
Dry Location
(20/5 Gauge Wire)
LLED8600-PC
(33” Standard)
LLED8600-PC-X
(X = Specify Length)
Continuous Connector
Dry Location
(20/5 Gauge Wire)
LLED8600-CC
(33” Standard)
LLED8600-CC-X
(X = Specify Length)

DMX Accessories (Click on an Option for Additional Information)

DMX Decoder
(DMX-RGBX)
Standard DMX Controller
(DMX-128C)
Color Wheel DMX Controller
(DMX-1024C)

Mounting Options (Click on an Option for Additional Information)

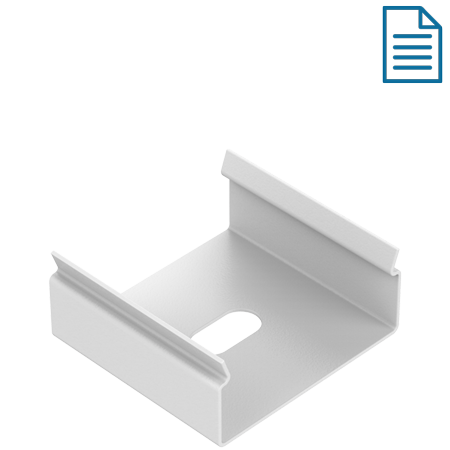

Mounting Clip
LLED8600-UC-MC
Mounting Clip 1
LLED8600-UC-MC-1
Mounting Clip 2
LLED8600-UC-MC-2
Mounting Clip 3 (Adjustable)
LLED8600-UC-MC-3
(Adjustable)
Mounting Clip 4
LLED8600-UC-MC-4-X
(X=Specify Length)

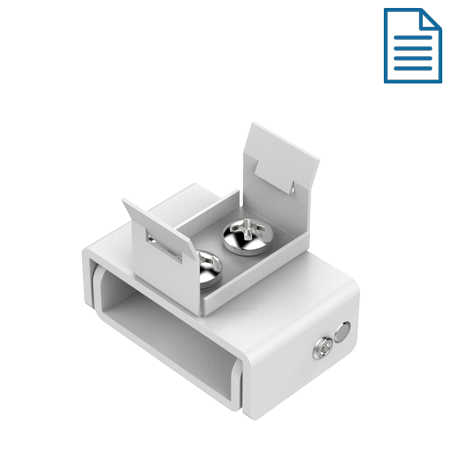

Adjustable Mounting Clip
LLED8600-UC-MC-ADJ

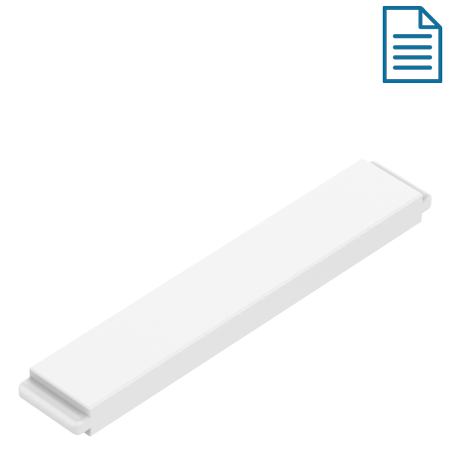

Channel Clip
(Dry Location)
(LLED8600-UC-CP)

Connectors (Click on an Option for Additional Information)

Power Connector
Dry Location
(20/5 Gauge Wire)
LLED8600-PC
(33” Standard)
LLED8600-PC-X
(X = Specify Length)
Continuous Connector
Dry Location
(20/5 Gauge Wire)
LLED8600-CC
(33” Standard)
LLED8600-CC-X
(X = Specify Length)

DMX Accessories (Click on an Option for Additional Information)

DMX Decoder
(DMX-RGBX)
Standard DMX Controller
(DMX-128C)
Color Wheel DMX Controller
(DMX-1024C)

Mounting Options (Click on an Option for Additional Information)

Mounting Clip
LLED8600-UC-MC
Mounting Clip 1
LLED8600-UC-MC-1
Mounting Clip 2
LLED8600-UC-MC-2
Mounting Clip 3 (Adjustable)
LLED8600-UC-MC-3
(Adjustable)
Mounting Clip 4
LLED8600-UC-MC-4-X
(X=Specify Length)
Adjustable Mounting Clip
LLED8600-UC-MC-ADJ

Channel Clip
(Dry Location)
(LLED8600-UC-CP)
